1.APPLICATION:
1)this machine adopt LLDPE as the basic mateiral, adopt different type of resin, extrusion the single side sticky or double side sticky stretch/cling film;
2)This film with strong tension, it both with good retraction memory and self-sticky, can let the goods package well, then can avoid the goods collapse or dirty pollution on the transport way.
3)The film with good transparency and extensibility,this stretch film widely used for big goods Unitized pallet package, it is the great replacement product for the hot shrink film.
2.MAIN TECHNICAL SPECIFICATION
|
Model |
LYM-1000×3 C |
LYM-1500×3C |
|
Screw diameter |
70mm/55mm×2 |
90mm/65mm×2 |
|
Screw L/D ratio |
30:1 |
30:1 |
|
Die head width |
1250(mm) |
1600(mm) |
|
Finished product width |
1000mm/500mm×2roll |
1500mm/500mm×3 |
|
Film thickness |
0.006-0.05(mm) |
0.01-0.05(mm) |
|
Film structure |
A/B/C;A/B/A |
A/B/C |
|
Max. Output capacity |
100-125KG/H |
160-200KG/H |
|
Machine liner speed |
50-100M/min |
50-60m/min |
|
Total power |
120KW |
160KW |
|
Power supply |
380V/3phase/50HZ |
380V/3phase/50HZ |
|
Dimension |
8×3×3.5M |
8.4×6×3.5m |
|
Total weight |
5500KG |
7000kg |

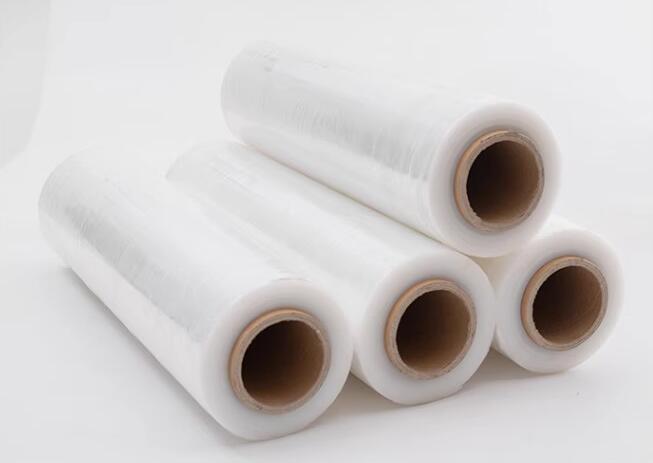

3.stretch film sample
